Description

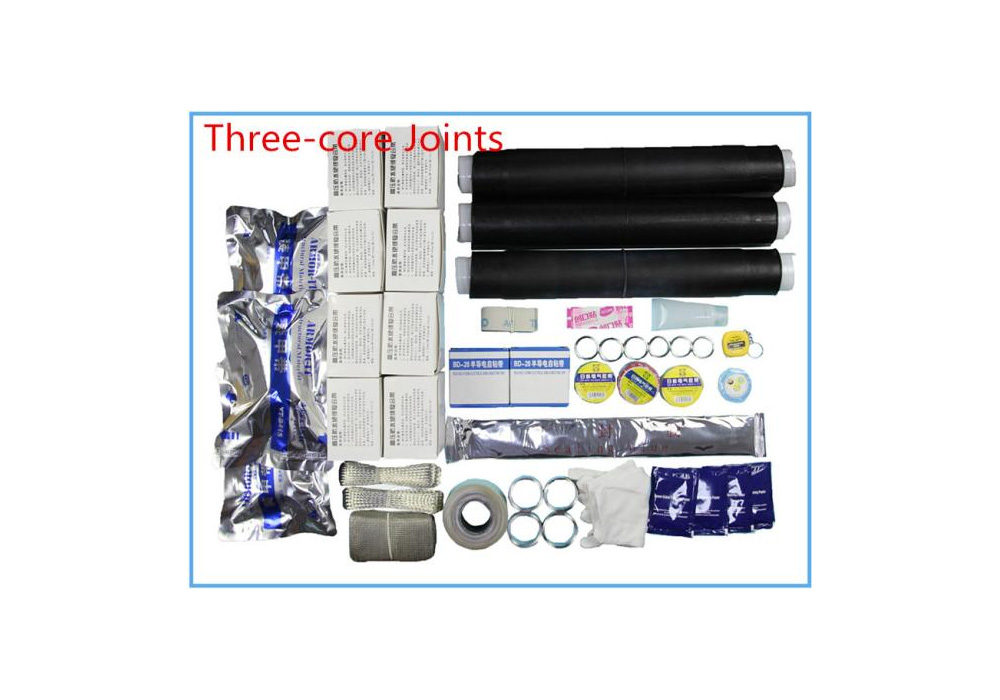

Suitable for voltage 3.6/6kV, 6/6kV, 6/10kV, 8.7/10kV, 8.7/15kV three-core cross-linked cable
connecting, plays the roll of sealing and insulating, especially in the flammable and explosive
places.
| Voltage Class | Model | Cross-Section/mm2 |
| 10kV, Joint, 3-core | RL-LS10kVJ-3-1 | 25-50 |
| RL-LS10kVJ-3-2 | 70-120 | |
| RL-LS10kVJ-3-3 | 150-240 | |
| RL-LS10kVJ-3-4 | 300-400 |
Technical Data
| Item | Requirements |
| AC voltage test(39kV, 5min) | No breakdown |
| Partial discharge(15kV) | ≤10 |
| Impulse voltage test(95 ~ 100℃. 95kV, 10impulses of each polarity) | No breakdown |
| Combined cycling test with AC voltage(30 cycles in water and 30 cycles in air) | 22kV |
