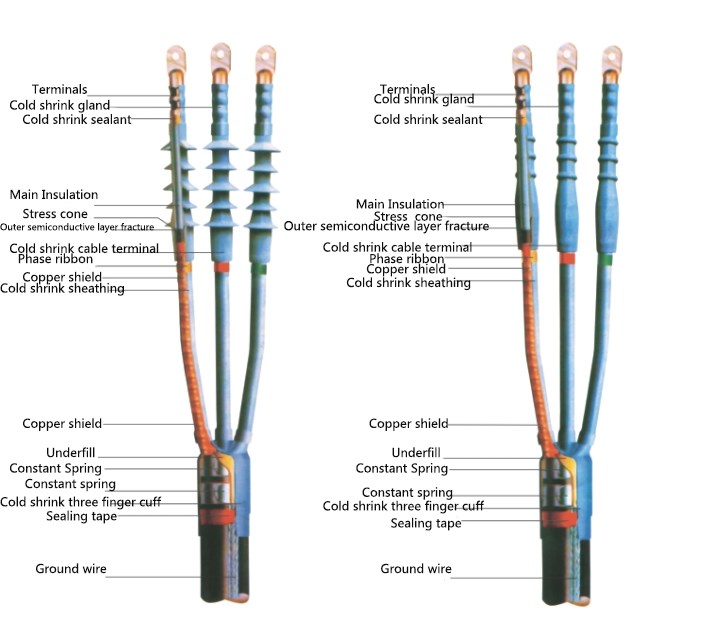

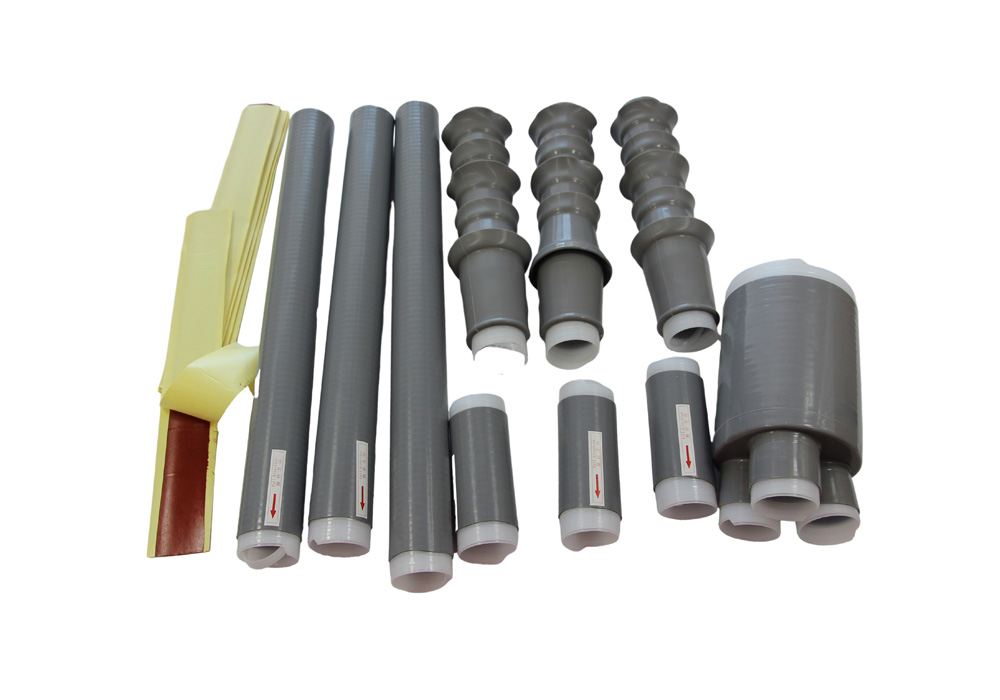

Description
Suitable for voltage 3.6/6kV, 6/6kV, 6/10kV, 8.7/10kV, 8.7/15kV three-core cross-linked cable
connecting, plays the roll of sealing and insulating, especially in the flammable and explosive
places.
Specifications
Voltage Class | Model | Cross-Section/mm2 |
10kV, Indoor/Outdoor Termination, 3-core | RL-LS10kVN/W-3-1 | 25-50 |
RL-LS10kVN/W-3-2 | 70-120 | |
RL-LS10kVN/W-3-3 | 150-240 | |
RL-LS10kVN/W-3-4 | 300-400 |
Technical Data
Item | Requirements |
AC voltage test(39kV, 5min) | No breakdown or flashover |
Partial discharge(15kV) | ≤10 |
Impulse voltage test(95 ~ 100℃. 95kV, 10 impulses of each polarity) | No breakdown or flashover |
Combined cycling test with AC voltage (30 cycles in water and 30 cycles in air) | 22kV |
