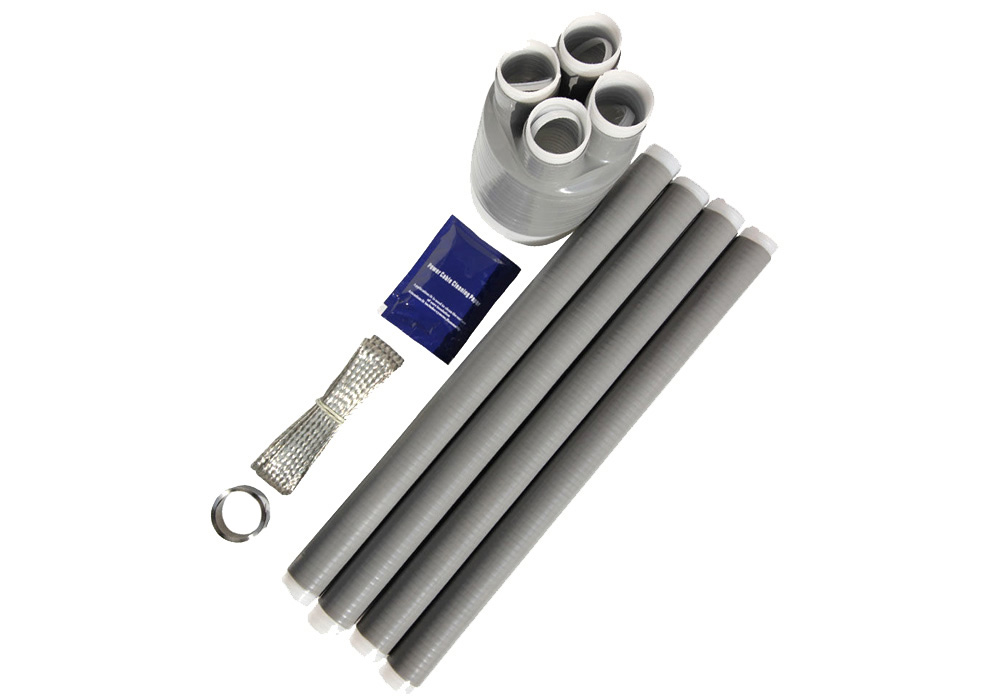

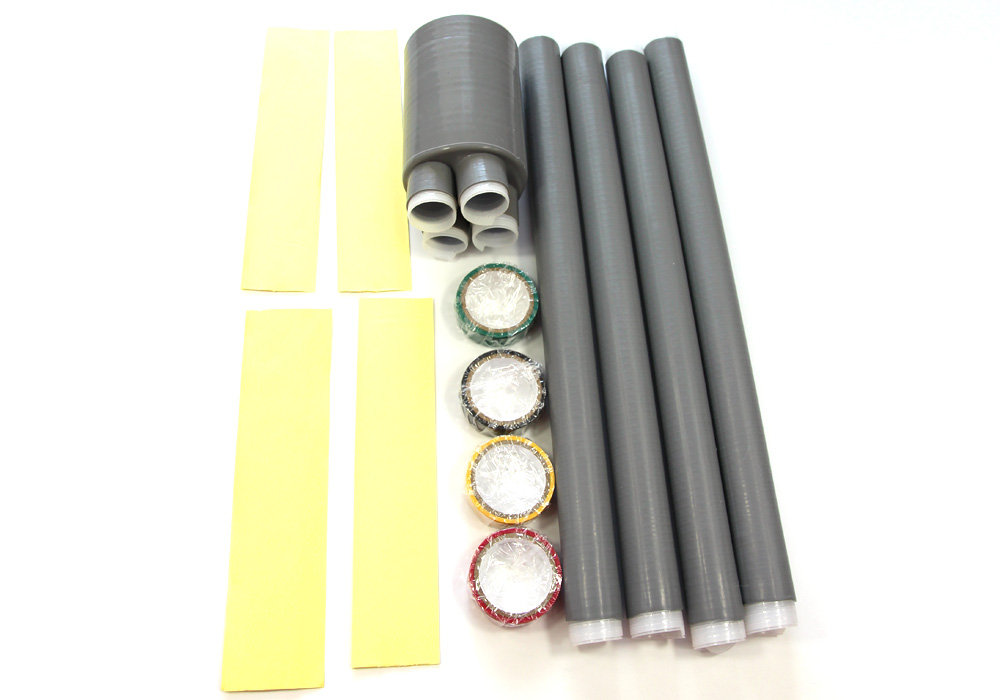

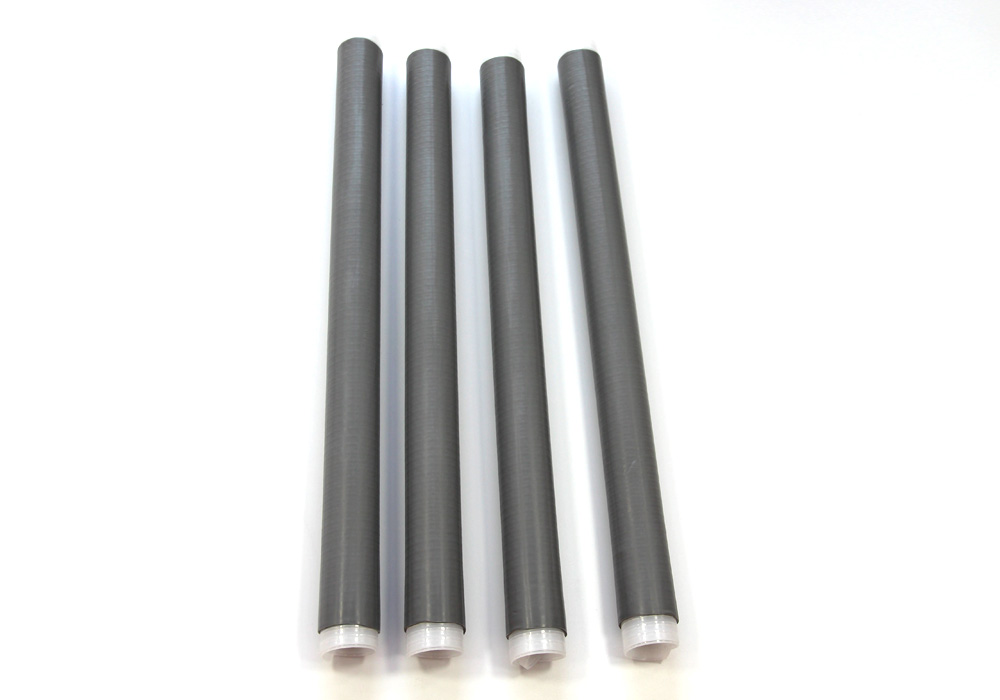

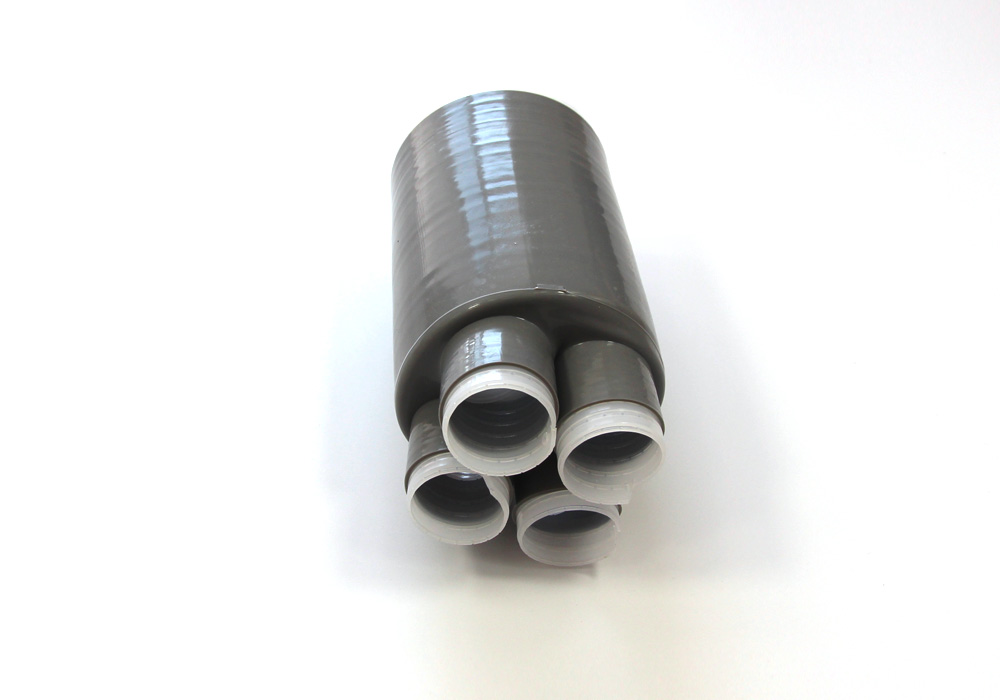

RUNLIN 1kV Cold Shrink Cable Indoor / Outdoor Termination suitable for 0.6/1kV and below voltage, it mainly divided into the single core, two-core, three-core, four-core, five-core, which is widely used in the terminals processing and middle connection of low-voltage electric cable. Cold Shrinkable cable accessories adopt the most advanced technology of cold shrinkable, dispense with using fire or others special tools. Only need to draw out the wires, when you prepare for installation, and the elastomer will rapidly shrink and appress to the installation position.
Features
Offer real advantages over other cable sealing methods:
• Reliable seal against water.
• Tough, resilient rubber holds pressure seal, even after exposure.
• Broad application range; can lower inventory costs.
• Eliminates need for heat source or special tools.
• Reduces installation time for sealing jobs.
• Easily removed for inspections or disconnects.
• Resistant to fungus, ozone, alkalies and acids.
• Constant radial pressure helps connectors stay together in wind and vibration.
Voltage | Model | Applicable Section(mm²) | Outer diameter of insulation(mm) |
0.6/1kv Indoor/Outdoor Cable Terminations | 1# | 25-50 | 7.8-10.3 |
2# | 70-120 | 12-15.4 | |
3# | 150-240 | 17.3-21.7 | |
4# | 300-400 | 24-27.5 |
