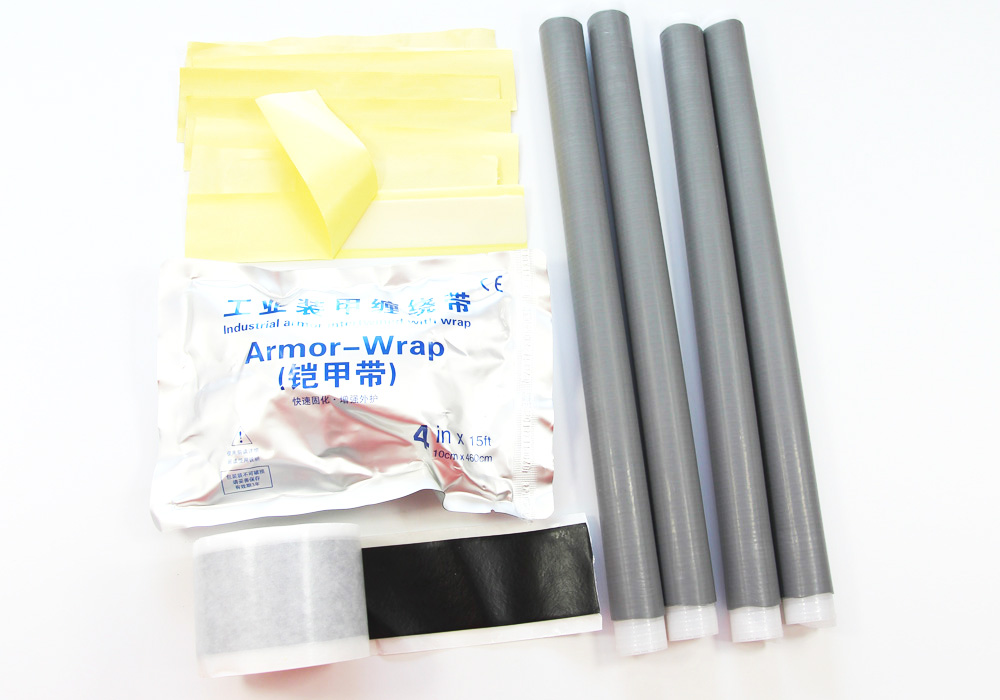

RUNLIN 1kV Cold Shrink Cable Joint Kits suitable for 0.6/1kV and below voltage, it mainly divided into the single core, two-core, three-core, four-core, five-cove, which is widely used in the terminals processing and middle connection of low-voltage electric cable. Cold Shrinkable cable accessories adopt the most advanced technology of cold shrinkable, dispense with using fire or others special tools. Only need to draw out the wires, when you prepare for installation, and the elastomer will rapidly shrink and appress to the installation position.
Voltage | Model | Appicable Section(mm2) |
0.6/1kV Cable Joint | 1# | 25-50 |
2# | 70-120 | |
3# | 150-240 | |
4# | 300-400 |
Technical Data
Performance | Test Method |
1min Power Frequency Test | 4kV/1min, no breakdown |
Cycle Load Test | 3times cycle test |
4h Power Frequency Test | 2.4kV/4h, no breakdown |
