Silicone Cold Shrink Termination (Push-on)
Silicone push-on indoor and outdoor termination for 10KV , 15kV, 24kV and 36KV is designed to
single core and 3-core cables. The push-on terminations provide longer shelf life. All of the indoor and outdoortermination meets requirements CENELEC HD 629.1 S1, IEEE-48, IEC60502.
Technical Data
Voltage Class | kV | 6.35/11(12) 8.75/15(17.5) | 12/20(24) 12.7/22(24) | 18/30(36) 19/33(36) |
CableInsulationDiameter | mm | 16-50 | 18-55 | 20-55 |
Cross Section Range | mm2 | 25-800 | 25-630 | 35-630 |
Max system Voltage Um | kV | 17.5 | 24 | 36 |
Basic Impulse Level | kV | 95 | 125 | 195 |
Partial Discharge at 2Uo | pC | <5 | <5 | <5 |
ACVoltagewithstand,5min | kV | 39 | 57 | 86 |
DCVoltagewithstand,5min | kV | 52 | 76 | 114 |

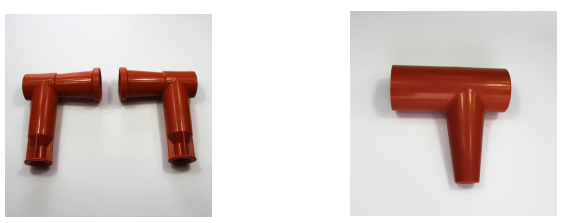

Red Tee Type Unscreened Separable Connector
Silicone Separable Tee unscreened Connector for 15kV, 24kV and 36KV is designed to connect polymeric
insulated cable to equipments, such as transformer, switchgear, motors. The connector fits 630A and1250A bushings and
is suitable for cable cross section from 25sqmm to 1000sqmm Each separable is tested in the factory for AC withstand and partial discharge prior to shipment. The separable connector meets requirements IEC60502.
Technical Data
Voltage Class | kV | 6.35/11(12) 8.75/15(17.5) | 12/20(24) 12.7/22(24) | 18/30(36) 19/33(36) |
CableInsulationDiameter | mm | 16-50 | 18-55 | 20-55 |
Cross Section Range | mm2 | 25-800 | 25-630 | 35-630 |
Max system Voltage Um | kV | 17.5 | 24 | 36 |
Basic Impulse Level | kV | 95 | 125 | 195 |
Partial Discharge at 2Uo | pC | <5 | <5 | <5 |
ACVoltagewithstand,5min | kV | 39 | 57 | 86 |
DCVoltagewithstand,5min | kV | 52 | 76 | 114 |

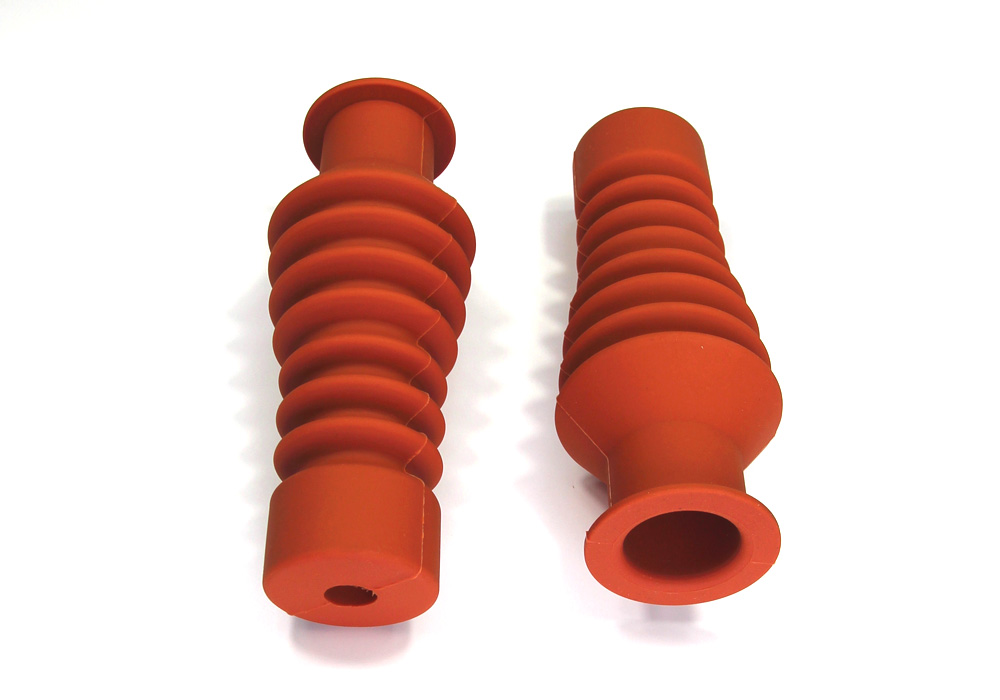

Silicone Insulation Boot
Silicone Straight insulation boot is an insulating barrier which can be used to connect indoor
termination. The silicone boot provides phase to phase to earth insulation to power cable termination, these terminations need to be installed in very compact space, such as motor terminal boxes, ring main units,
distribution transformers etc, where the air clearance is not sufficient for normal operation or to protect against flashover.The red insulation boot from silicone rubber which has high insulation and track resistance
Property | Unit | Typical Value | Test Method |
Tensile Strength | Mpa | 10 | ASTM D421 |
Elongation | % | 900 | ASTM D412 |
Tear Strength | N/mm | 48.6 | ASTM 624 |
Volume Resistivity | Ω.CM | 1.3*10 15 | ASTM D4325 |
Silicone Straight Red Boot
Property | Unit | Typical Value | Test Method |
Tensile Strength | Mpa | 10 | ASTM D421 |
Elongation | % | 900 | ASTM D412 |
Tear Strength | N/mm | 48.6 | ASTM 624 |
Volume Resistivity | Ω.CM | 1.3*10 15 | ASTM D4325 |
